YT-01
发布时间：2018-10-10 浏览次数：17164 产品分类：射频识别清点设备 发布时间：2018-10-10 浏览次数：17164产品分类：射频识别清点设备

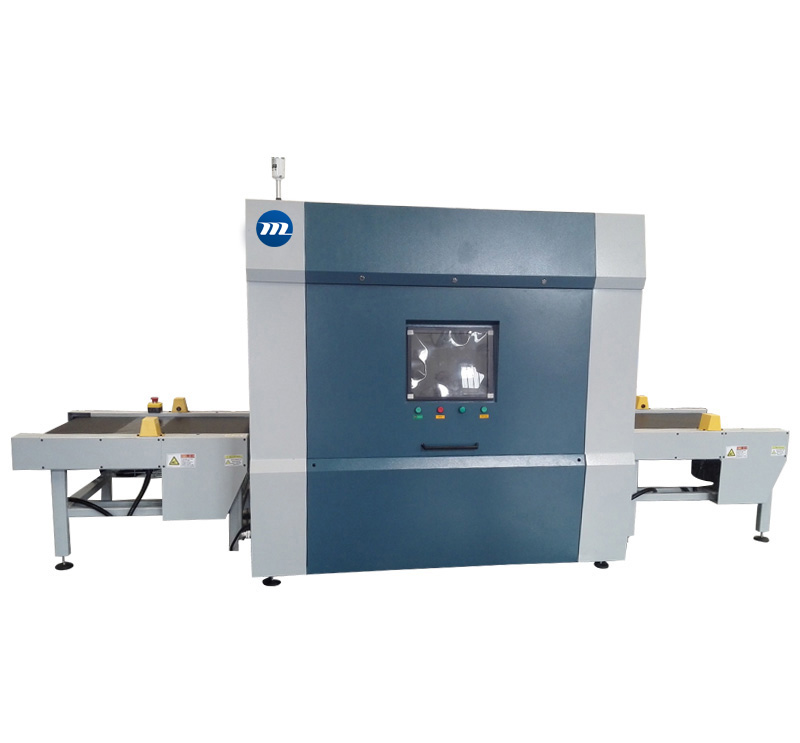

产品名称：YT-01
产品属性：
产品规格：
产品属性：
产品属性：
该系统结合传统输送带列队、分拣的功能，配合RFID射频扫描对整箱货物进行判别，可快速对出库、入库的产品进行整箱盘点，并根据盘点结果进行分拣流转。
若是独立使用该组系统，工人可将货箱抬至缓冲台，依靠缓冲台的万向滚珠轻松将纸箱推入输送带；若是将该组系统结合运用于现有传送带，将列队输送带部分直接接入现有系统即可
该设备适用于所有已经贴上RFID标签的非金属货物，实现出、入库的快速点选，节省了大量的人员和时间，可以与公司物联网系统进行对接，即为RFID+互联网，让公司对产品的整个生命周期进行全程监控。
该设备特别适用于服装、化妆品、药品等单值较大且大宗的商品。
Combined with the functions of traditional conveyer belt procession and sorting, the RFID Conveyor with RFID radio frequency scanning to identify the boxes of goods, and can quickly count the products out of the warehouse and in the warehouse, and carry out sorting and circulation according to the inventory results.
If the system is used independently, the worker can lift the container to the buffer table and easily push the carton into the conveyor belt with the universal ball bearing of the buffer table. If the group system is applied to the existing conveyor belt, the part of the conveyor belt can be directly connected to the existing system.
RFID Conveyor is applicable to all non-metal goods that have been tagged with RFID. It can be used to realize quick point selection for delivery and storage, which saves a lot of personnel and time. It can be connected with the company's Internet of things system, namely RFID+ Internet, which enables the company to monitor the whole life cycle of products.
RFID Conveyor is especially suitable for large and large quantities of commodities such as clothing, cosmetics and medicines.
|
|
||
|

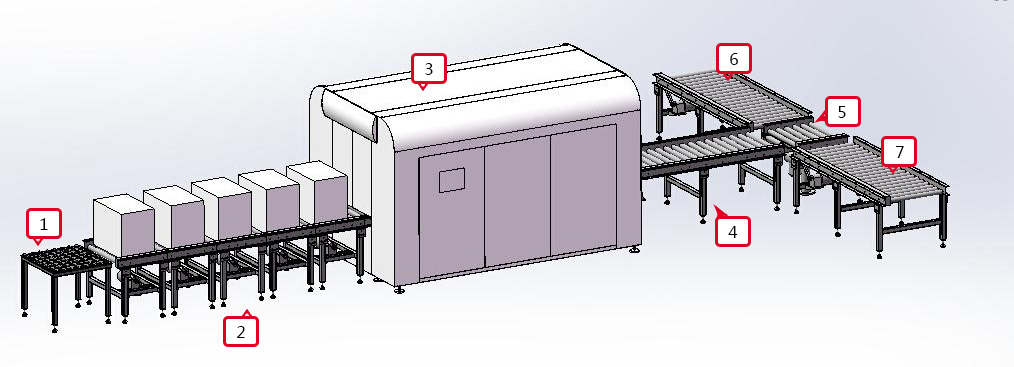

模块 |
||
|
1 |
缓冲台 |
供人工投掷纸箱，推入输送机用 （可选配） |
|
2 |
列队输送带 |
纸箱将在该区域等待进入RFID箱 |
|
3 |
RFID屏蔽箱 |
RFID超高频快速感应箱，配输送带、触摸监控屏及横向开合门 |
|
4,6,7 |
输送带 |
传输用 |
|
5 |
旋转台 |
根据RFID读取结果进行纸箱分拣 |
|
产品适用性 |
|
|
缓冲台 |
最大载重≤65kg |
|
输送线 |
纸箱尺寸≤400*500*600mm 重量≤35kg 单箱标签数量≤150枚 |
|
旋转台 |
360°转角 |
|
运行效率 |
|
|
效率≥350箱/小时 (单箱处理耗时≤10s) |
|
|
外观尺寸 |
|
长度：10000mm宽度：1900mm高度：1900mm 屏蔽箱尺寸：3000*1900*1900mm |
|
Modules |
||
|
1 |
Cushion Table |
Carton feeding station, for manual use only ( Optional ) |
|
2 |
Buffer |
Cartons queuing up here and wait to be pulled out to the next section |
|
3 |
RFID Shielding Box |
RFID Detection System, incl. Conveyor belt, Touch Monitor and Auto Sliding Door |
|
4,6,7 |
Output System |
Cartons Output |
|
5 |
Redirect System |
Redirect Cartons to pre-defined sections under RFID detection result |
|
Products |
|
|
Cushion Table |
Max Load.≤65kg |
|
Conveyor |
Carton Size≤400*500*600mm Weight≤35kg Tags/Carton≤150pcs |
|
Redirect System |
360°Rotation |
|
Performance |
|
|
UPH≥350 Cartons/h（Unit process time≤10s） |
|
|
Dimensions |
|
Length：10000mm Width：1900mm Height：1900mm Shielding Box：3000*1900*1900mm |
